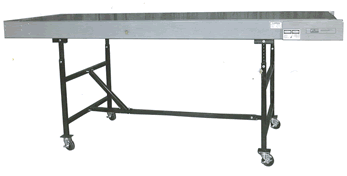

(E-Series Units
available to 48" and any length)
|
CONSTRUCTION:
|
 |
E = Formed mild or stainless steel
channel (All frame depths available).
|
|
|
|
|
|
|
|
A = Structural aluminum extrusion (3XX, 5XX frame
depths only).
|
|
FRAME DEPTH
& GAUGE:
|
3 = 4" deep 10 ga. steel, or 1/8" aluminum
frame - underslung, motor pulley or side mounted
motor only.
|
|
|
|
|
|
|
5 = 6 " deep 10 ga.steel or 3/16" aluminum
frame - 1/3 hp (110V) / 1/2 hp (230/460V) maximum
internally mounted.
|
|
|
|
|
|
6 = 8 " deep 10 ga. frame - 1.0 hp (all voltages)
maximum internally mounted.
|
|
|
|
|
|
7 = 8 " deep 7 ga. frame - 1.0 hp (all voltages)
maximum internally mounted.
|
|
|
|
|
|
9 = 10 " deep 7 ga. frame - 1.5 hp (all voltages)
maximum internally mounted.
|
|
MOTOR MOUNT:
|
00 = Motor underslung beneath frame.
|
|
|
|
|
|
01 = Motor side mounted (with chain drive and
right angle reducer).
|
|
|
|
|
07 = Motor side mounted (with hollow bore right
angle reducer).
|
|
|
|
|
09 = Motor pulley.
|
|
|
|
|
10 = Motor internally mounted, yet easily accessible.
|
|
BELT WIDTH:
|
(INCHES) = All frames overlap belt 1/2"on
each side; exposed belt = belt width minus 1".
|
|
|
FRAME LENGTH:
|
(INCHES) = Up to 120"L (except ET). (FEET.INCHES)
= Greater than 10'-0"L.
|
|
|
FRAME WIDTH:
|
(3XX / 5XX) = Belt width + 4".
|
|
|
(7XX / 9XX) = Belt width + 5" / 8 "
(TYPICAL) .
|
E- |
5 |
10- |
18- |
11.06 |
|
(E-Series, 6" deep frame,
internally mounted motor, 18" wide belt- 17"
exposed, 11'6" long frame). |
 |
 |
 |
 |
|
|
|
|
|
Variations: ET Series = Tubular discharge
end for low-profile entry into grinder opening.
|
(Optional) = Constructed so that the
belt runs above frame-full belt width usable.
|
Contact your LaRos representative
for assistance.
|
